Product Description

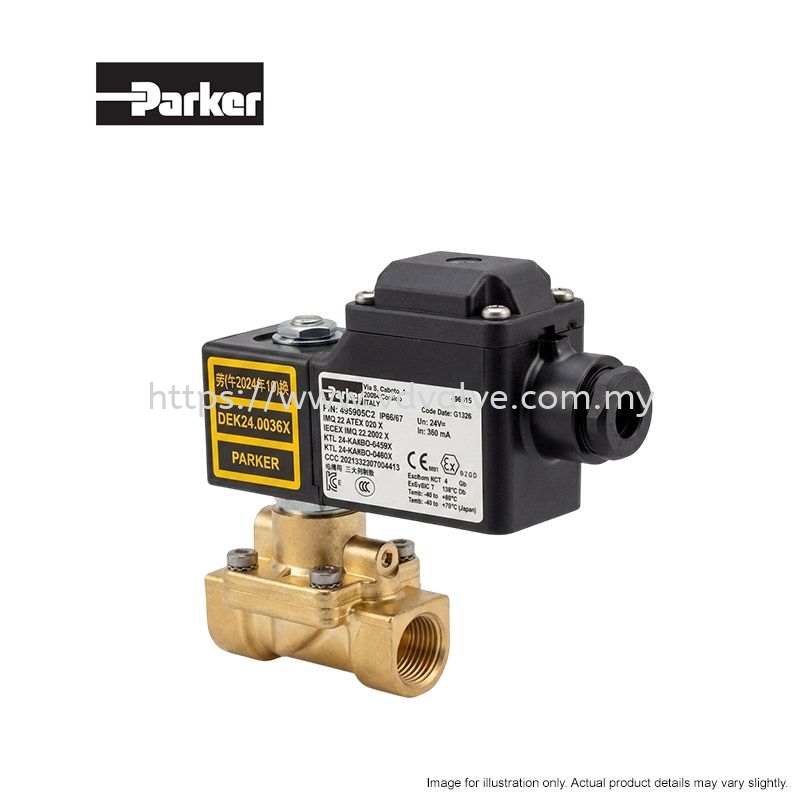

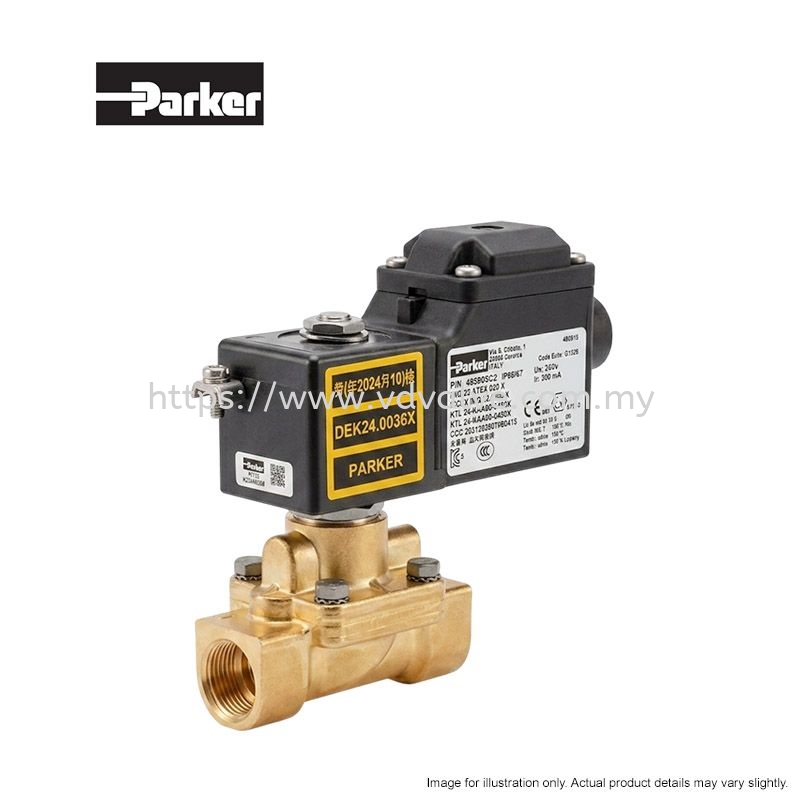

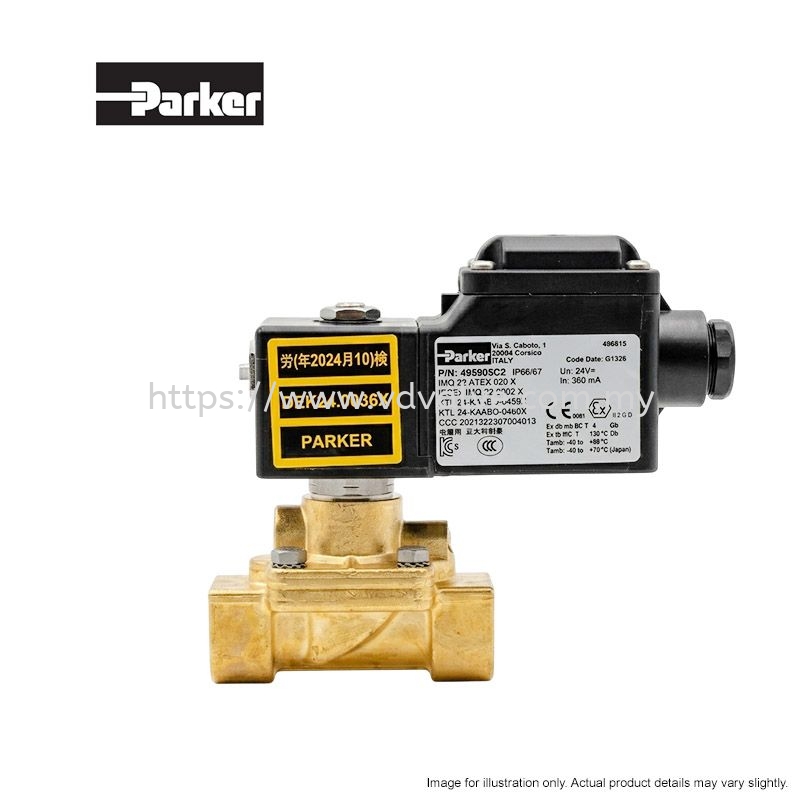

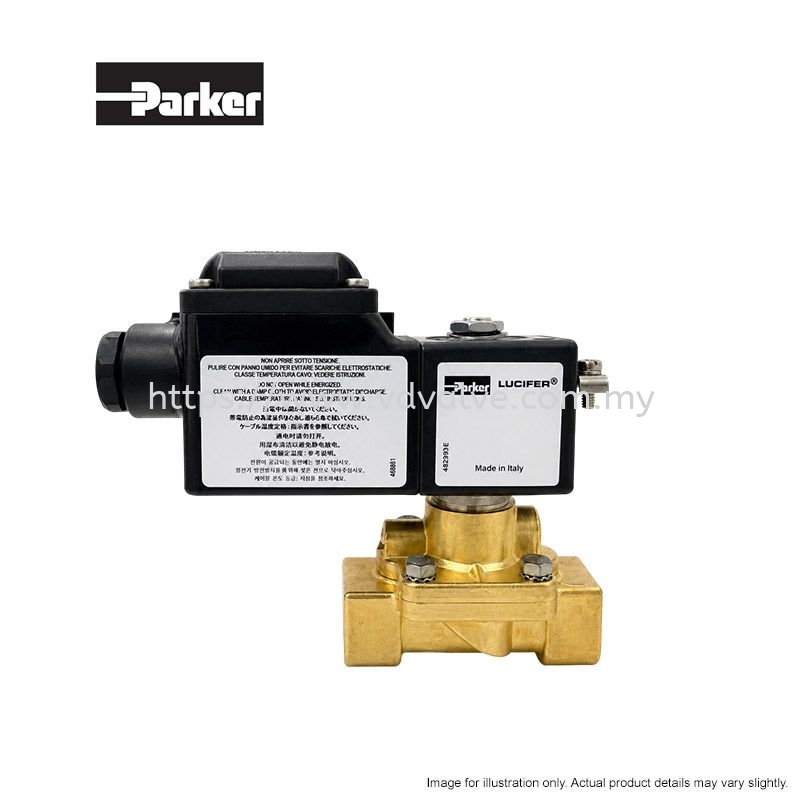

The PARKER 443779W (7321BAN00) solenoid valve is a 2/2-way normally closed pilot operated brass solenoid valve designed for reliable control of air, water, neutral gases, hydraulic fluids, petroleum products, and other compatible industrial media. When supplied with the PARKER 495905C2 (HZ96C2) explosion-proof coil, the valve becomes suitable for hazardous area applications requiring ATEX-certified electrical protection.

The valve features a forged brass body, stainless steel internal components, and an NBR diaphragm, providing excellent durability and long service life in demanding industrial environments. The pilot-operated design enables efficient operation with low power consumption while maintaining reliable flow control.

The supplied 495905C2 ATEX coil operates on 24VDC, 8W and is certified II 2G EEx dm IIC T4, making it suitable for installation in potentially explosive gas environments. The coil is encapsulated in synthetic material with IP67 protection, ensuring reliable performance under harsh industrial conditions.

This assembly is commonly used in oil & gas, petrochemical plants, chemical processing facilities, palm oil mills, fuel handling systems, and industrial process automation where explosion-proof solenoid valve operation is required.

---

Key Features

2/2-Way Normally Closed Operation
Valve remains closed when de-energized and opens when power is applied.

Pilot Operated Solenoid Valve Design
Provides efficient operation with low power consumption and reliable flow control.

Brass Valve Body Construction
Forged brass body offers durability and corrosion resistance for industrial applications.

1/2" BSP Port Connection
Suitable for common industrial fluid and gas piping systems.

ATEX Explosion-Proof Coil Included
Supplied with PARKER 495905C2 (HZ96C2) explosion-proof coil.

24VDC Coil Operation
Low power consumption of 8W with continuous duty operation.

ATEX Certified
Rated II 2G EEx dm IIC T4 for hazardous area installations.

IP67 Protection Rating
Provides excellent protection against dust and water ingress.

Suitable for Multiple Media
Compatible with air, water, neutral gases, hydraulic fluids, and petroleum products.

---

Typical Applications

• Oil & gas facilities
• Petrochemical plants
• Palm oil mills
• Chemical processing systems
• Fuel handling systems
• Hazardous area pneumatic systems
• Industrial process automation
• Explosion-proof control systems

---

Technical Specifications

Valve Model: 443779W (7321BAN00)
Valve Type: 2/2-Way Normally Closed
Operation: Pilot Operated
Body Material: Forged Brass
Seal Material: NBR
Port Size: 1/2" BSP
Operating Pressure: 0.1 – 20 bar
Maximum Fluid Temperature: 90°C

Coil Model: 495905C2 (HZ96C2)
Voltage: 24VDC
Power Consumption: 8W
Protection Class: IP67
ATEX Rating: II 2G EEx dm IIC T4
Ambient Temperature: -40°C to +65°C
